MIDI has stayed relevant for over 30 years by adapting to the different ways that computers send information to and from external devices. MIDI can now be sent over 5 Pin DIN, Serial Ports, USB, Firewire, Ethernet, Bluetooth and more. But currently the most prevalent way to connect to computers, tablets and smartphones is USB. This article will cover the basics of USB-MIDI.
In the early
The USB-IF had some clear goals when first developing the USB specification
The basic USB system architecture is actually pretty simple and consists of the following main components:
The Universal Serial Bus is a host controlled bus. All data transfers are initiated and controlled by the host and USB peripherals are slaves responding to host commands. So for USB MIDI peripheral devices you need a computer, smartphone or tablet in the system to control and initiate USB communication.
USB devices are defined into specific functional classes, for example image, human interface devices (keyboard, mouse, joystick), mass storage, and audio. The operating system can then know what the devices is designed to do and automatically load what is called a class compliant driver for that type of devices. In 1999, the MIDI specification was developed by the USB-IF in cooperation with the MIDI Manufacturers Association and included in the Audio class of devices. That is why sometimes when you connect a USB-MIDI peripheral, the OS will display a message that says USB-Audio devices connected. As far as USB is concerned MIDI is an Audio Class Compliant device.
Class compliant drivers are convenient because you don't have to download any external software. But often manufacturer specific drivers provide added functionality. Let's use Yamaha has an example. Because data transfer on USb is much faster than 5 pin DIN it is possible to have multiple ports of MIDI (a port is a group of 16 MIDI channels) on a single USB cable. The dedicated Yamaha USB Driver provides for 8 ports of high speed USB, includes the names of all the devices that are compatible with the driver and has some routing capabilities. These features are only available if you download the driver from Yamaha's website. Also many audio interfaces are also MIDI interfaces and audio and MIDI travel over the USb cable. So if you purchase a MIDI or Audio interface you should always check the product manual and manufacturer's website to see if there is a dedicated USB driver for your product that provides added functionality. Often even if the manufacturer specific driver is available when connected to a device which don't allow driver downloads into the operating system (for example iOS devices), the product will still work as a class compliant USB device.
Over the years, USB has developed and there are now a number of different cable types and USB specifications. Let's take a look at the different connectors.
The Type A connector has a pin that supplies power to external peripherals so you need to be carefully about trying to connect two hosts via a Type A to Type A cable. This can cause serious damage to your gear so consult the manufacturer and manual before attempting this.
The Type A connector is for host controllers (computers, smartphones, tablets and some digital musical instruments that act as hosts) and USB hubs. A USB hub is a device that expands a single (USB) port into several so that there are more ports available to connect devices to a host system.USB hubs are often built into equipment such as computers, computer keyboards, monitors, or printers. When a device has many USB ports, they all usually stem from one or two internal USB hubs rather than each port having independent USB circuitry. If you need more USB ports, there are also external hubs that you can buy. You need to check to see if your USB peripherals need to be powered by USB and if they do you may need a powered USB hub.
On many digital musical instruments you find two USB connectors - one Type A connector labeled To Device and one Type B labeled To Host . The To Host is usually used to send MIDI, Audio or both Audio and MIDI to a computer, smartphone or tablet. If your digital music product sends both MIDI and Audio over USB, you will almost certainly need a manufacturer specific driver.
The To Device is usually used for USB Storage devices like Flash Thumb drives, but it can be used for other things depending on what the Host music product supports for device classes.

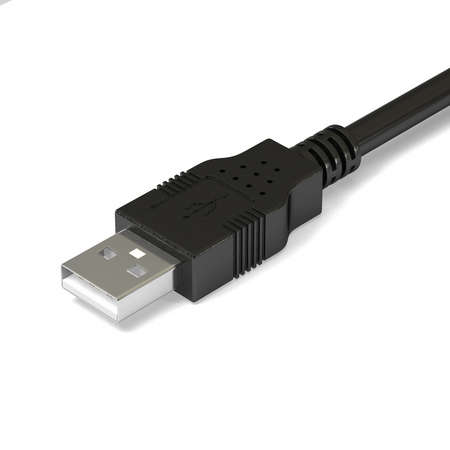

Considered the standard and most common type of connector, A-style connectors are found on the PC or charger side of most cables. This flat, rectangular interface is held in place through friction. Durable enough for continuous connection but easy enough for users to connect and disconnect, this connector type is also available in micro variations.

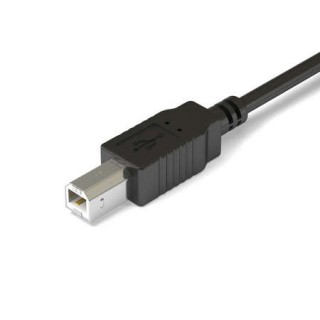

Type-B USBs were traditionally used with printer cables but, they're now found on many popular models of Android™ smartphones and external hard drives. These USBs feature a square interface and are available as a Micro-USB B, USB Mini-b (5-pin), and USB Mini-b (4-pin).
The newest type of connector on the market, Type-C is a one-size-fits-all solution. Developed to support devices with a smaller, thinner and lighter form factor. Type-C is slim enough for a smartphone or tablet, yet robust enough for a desktop computer. It also has the advantage of a reversible plug orientation and cable direction, eliminating the guesswork about which direction the connection goes.
USB Type-C is designed as a one-size-fits-all solution for data transfer and power supply on any device. Featuring a smaller connector, Type-C fits into one multi-use port to simultaneously charge devices and transfer data and also offers backward compatibility to support previous USB standards (2.0, 3.0, and 3.1).
Type-C is quickly becoming the new standard for operating systems and hardware providers; Intel's Thunderbolt recently switched to USB Type-C ports while enabling cross compatibility with USB 3.1. The new Apple MacBooks feature a Type-C port.
The USB-IF predicts that by 2019, all laptops, tablets, mobile phones, and other consumer electronics will be equipped with USB Type-C.
In the meantime, if you have a newer computer, you may need an adapter to connect your MIDI gear to your computer.
